A Lego display shelf has to be deeper than most people expect. A modular building takes 25 to 26 cm front to back, a Technic supercar about the same in width, and Rivendell needs 50 cm. For modular buildings and Technic cars, choose a shelf with at least 26 cm of usable depth; our pick is the Fun Memories deep floating shelves at 29.5 cm deep. Measure depth first, then the clear height between shelves, then think about load and dust.
Every fit in this guide is calculated on paper from Lego's official assembled dimensions and the sizes the shelf makers state. We have not mounted these shelves ourselves. Where a maker leaves out a number you need, such as the inside depth of a cabinet, we say so instead of guessing.
Our pick: deep floating shelves for modulars and Technic cars

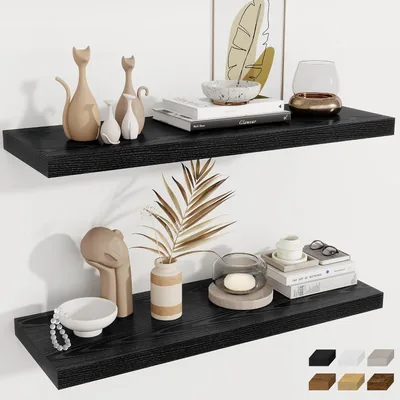

Fun Memories deep floating shelves (2-pack): room for three modulars per board
- Size: two boards, each 89.9 cm long, 29.5 cm deep and 3.8 cm thick
- Material: CARB P2 engineered wood
- Mounting: hidden metal brackets, with screws, wall anchors and a spirit level included
- Load: the listing states a maximum, but quotes two different figures in different places
These boards are deep enough for the sets that most often end up on a wall. A 25 or 26 cm-deep modular leaves 3.5 to 4.5 cm of board in front of it, and three modulars side by side (Jazz Club, Tudor Corner and Shopping Street: 25 + 26 + 25 cm) take 76 cm of the 89.9 cm length, leaving about 14 cm to spread between them (calculated). Swap one for the 39 cm-wide Natural History Museum and the row grows to 89 or 90 cm: it fills the 89.9 cm board or overhangs it by a millimetre. The Ferrari SF-24 F1 car sits lengthwise with 5.5 cm to spare in depth, and a modular still fits beside it: 61 + 25 = 86 cm.
Plan the gap between the two boards before you drill. Shopping Street is over 36 cm high, so give it about 40 cm of clear height to lift it in and out. With 3.8 cm boards, that puts the brackets roughly 44 cm apart (calculated). Technic cars are only 13 to 14 cm high and can sit on a much tighter spacing.
An open board does nothing about dust. Barad-dûr is 30 cm deep, half a centimetre more than this board, and Rivendell needs a surface 50 cm deep. The listing does not give one consistent load figure, so treat its maximum with care and follow the maker's advice not to rely on wall anchors alone: at least one screw should go into a stud.
How deep does a Lego shelf need to be?
| Lego set | Official size (W × D × H) | What the shelf needs |
|---|---|---|
| Jazz Club 10312 | 25 × 26 × over 30 cm | 26 cm usable depth, about 34 cm clear height |
| Tudor Corner 10350 | 26 × 25 × over 31 cm | 25 cm depth, about 35 cm clear height |
| Shopping Street 11371 | 25 × 25 × over 36 cm | 25 cm depth, about 40 cm clear height |
| Ferrari SF-24 F1 Car 42207 | 61 long × 24 wide × over 13 cm | 61 cm of run, 24 cm depth when placed lengthwise |
| Paris skyline 21064 | 27 × 5 × over 30 cm | A narrow ledge of about 9 cm is enough |
| Hogwarts Castle: The Main Tower 76454 | 36 × 14 × over 67 cm | Shallow shelf, but about 71 cm of clear height |
| Titanic 10294 | over 135 long × 16 wide × 44 cm high | A run of at least 135 cm |
| Barad-dûr 10333 | 45 × 30 × over 83 cm | 30 cm depth and nothing above it |
| Rivendell 10316 | 72 × 50 × over 39 cm | A surface at least 50 cm deep and 72 cm wide |
All sizes are Lego's official assembled dimensions. Where Lego says "over", treat the number as a minimum. The clear-height column adds about 4 cm so you can lift a set out without catching the shelf above; that margin is our suggestion, not a Lego figure.
Two numbers explain most of the table. Anything modular-sized wants 26 cm of usable depth, and height catches people out: the Main Tower is only 14 cm deep but needs more than 67 cm of clear height. If you are still choosing your first modular, our guide to Tudor Corner vs Shopping Street compares the space each one needs.
IKEA furniture by the numbers
IKEA furniture is the obvious alternative to a dedicated display shelf. These are IKEA's own published figures, compared with the sets above on paper.
| IKEA furniture | Depth | IKEA load figure | What fits on paper |
|---|---|---|---|
| BILLY 80 × 28 × 202 cm | 28 cm outside; shelf depth not published | 30 kg per shelf | Modulars and Technic cars, with little to spare |
| BILLY 80 × 39 × 202 cm (deep) | 37 cm shelf depth | 42 kg per shelf | Barad-dûr's 30 cm footprint; not Rivendell (50 cm) or Hogwarts Castle 71043 (43 cm) |
| KALLAX 77 × 147 cm | 39 cm; compartments about 33 × 33 cm | 13 kg per shelf | One modular per compartment |
| LACK wall shelf, 110 or 190 cm | 26 cm | 10 kg (110 cm), 15 kg (190 cm) | Jazz Club with zero margin; Titanic's length on the 190 cm version |
| MOSSLANDA picture ledge, 55 cm | 12 cm | 5 kg | Paris skyline; New York 21066 (12 cm deep) with zero margin |
The standard 28 cm BILLY is a common home for modulars, but IKEA does not publish its inner width. Three modulars need 76 cm in a unit that is 80 cm wide on the outside, so measure between the side panels before you plan a full row. Deeper sets need the 39 cm BILLY.
A KALLAX compartment takes one modular footprint. IKEA does not state the compartment size; about 33 × 33 cm follows from the inserts it sells for it. That leaves 2 to 3 cm above Jazz Club and Tudor Corner, and Shopping Street at over 36 cm does not fit at all (calculated). The 61 cm Ferrari will not fit a compartment either.
LACK is 26 cm deep, which matches Jazz Club exactly. IKEA sells the wall screws separately, so choose them for your wall.
Rivendell, Barad-dûr and the Ferrari: sets that need a plan
Lord of the Rings Rivendell 10316
- Pieces: 6,167
- Age: 18 and up
- Needs a surface at least 50 cm deep and 72 cm wide
Rivendell is 72 cm wide and 50 cm deep, which rules out every wall shelf in this guide, the deep BILLY and KALLAX. Lego says the model splits into three sections, but it does not publish their sizes, so plan for the full footprint.
What works is a sideboard, chest of drawers or table at least 50 cm deep. If you have not bought the set yet, check that surface first, because a set this deep decides the furniture rather than the other way round.
Lord of the Rings Barad-dûr 10333
- Pieces: 5,471
- Age: 18 and up
- Over 83 cm high, needs nothing above it
Barad-dûr is a height problem more than a depth problem. At 45 × 30 cm its footprint is modest, but at over 83 cm tall it will not fit between two shelves of an ordinary bookcase at standard shelf spacing. Give it a surface with nothing above it, such as a sideboard or the top board of a wall run.
At 30 cm deep it overhangs a 29.5 cm floating shelf by half a centimetre on paper, so a deeper surface is the safer choice. Lego publishes no weight for its 5,471 pieces, which is another reason to keep it low on solid furniture.
Ferrari SF-24 F1 Car 42207
- Pieces: 1,361
- Age: 18 and up
- 61 cm long, fits lengthwise on a 26 cm-deep shelf
Long and low, the Ferrari is easy to place once you turn it lengthwise. Its 24 cm width fits any shelf from 26 cm deep, with 2 cm to spare on a LACK and 5.5 cm on the Fun Memories board. It needs 61 cm of run, so it will not go into a KALLAX compartment.
At over 13 cm high it can share a wall with taller sets on tighter shelf spacing. Other large Technic cars are similar: the McLaren P1 is over 59 cm long and 25 cm wide.
Dust: glass doors or open shelves
Open shelves are cheaper and easier to reach, but every set on them needs regular dusting. Glass doors cut that down a lot. No ordinary cabinet is dust-tight, though: open backs, gaps around the doors and the space under the base still let some in. Clear acrylic covers over single sets on an open shelf are another option. A closed cabinet also helps in a home with cats.

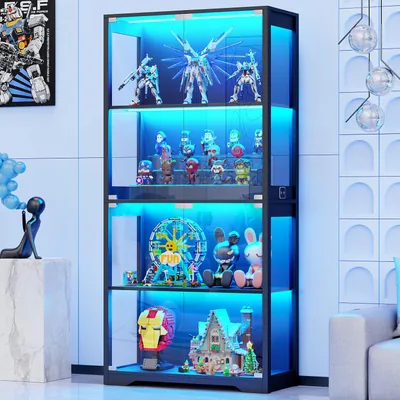

BROTTAR display cabinet with glass doors: a lit cabinet for mid-size sets
- Size: 80 cm wide, 165 cm high, 35.6 cm deep on the outside
- Layout: 4 tiers behind glass doors that open with a push, no handles
- Light: LED with white, warm and blue settings, adjustable brightness and a motion sensor
- Frame: FSC-certified wood, on legs
This cabinet suits a collection of mid-size sets that you want behind glass and lit without extra wiring. At 35.6 cm deep on the outside, a 25 or 26 cm modular very probably fits, but BROTTAR does not state the inside depth or the tier spacing, so that is not confirmed.
Height is the real limit. Four tiers in 165 cm, legs included, means at most about 41 cm per tier (calculated). That gross figure still includes the shelf itself, and the maker does not state the tier spacing, so 30 to 31 cm modulars may fit while Barad-dûr and the Main Tower will not. The maker does not state a load per shelf either. Pick it for lower sets such as Hogwarts Castle and Grounds 76419 (35 × 25 cm, over 21 cm high) and similar sets that you want to dust less often.
Small sets, minifigures and skylines
Small builds look lost on a 30 cm-deep board. Narrow wall cases and ledges put them at eye level and leave the deep shelves for the large sets.

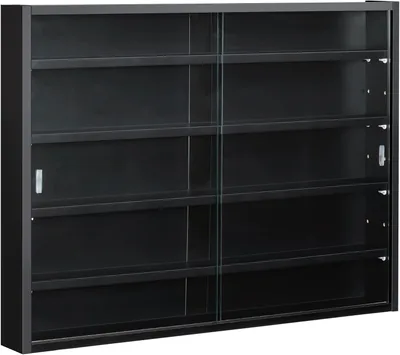

HOMCOM wall-mounted display cabinet with glass doors: a slim case for small builds
- Size: 80 cm wide, 60 cm high, 9.4 cm deep on the outside
- Inside: 77 cm wide and 7.6 cm deep
- Layout: 5 tiers, with 4 adjustable shelves and 7 height positions
- Access: two glass doors
- Load: 2 kg per shelf, according to the listing
HOMCOM states the inside depth, which makes this case easy to plan. At 7.6 cm it takes minifigures, small sets and the 5 cm-deep Paris skyline. New York 21066 is 12 cm deep and does not fit. Sixty centimetres over five tiers gives at most 12 cm per tier with all shelves in place (calculated), so a 30 cm-tall skyline needs a tall compartment, and the listing does not say whether shelves can be left out.
The 2 kg per shelf limit is low for anything heavier than figures and small builds. The case has to be fixed securely to the wall.

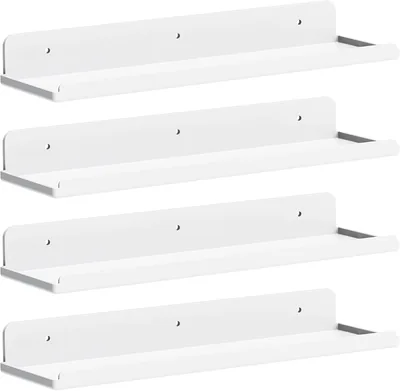

Lifewit narrow wall shelves (4-pack): budget ledges for figures and skylines
- Size: about 36 to 38 cm long and 10 cm deep, depending on the listing
- Usable depth: about 9 cm, with a raised lip at the front and sides
- Material: white plastic
- Included: 4 shelves, screws, wall anchors and a spirit level
Four short ledges cover a lot of wall. About 9 cm of depth holds minifigures, BrickHeadz and small sets, and the Paris skyline (27 cm wide, 5 cm deep) fits one ledge with room to spare. The lip stops figures from sliding off, and you can mount the ledges lip up or lip down.
The listings disagree on both the length and the load, so we quote neither as a firm figure. Use them for light builds only. They are open, so dust is the same as on any other shelf.
Lego Architecture Paris 21064
- Pieces: 958
- Age: 18 and up
- 5 cm deep, fits a 9 cm ledge on paper
The Paris skyline is over 30 cm tall but only 5 cm deep, so it needs height rather than depth. A Lifewit ledge or a 12 cm MOSSLANDA picture ledge holds it on paper with nothing above it.
Behind glass, the HOMCOM case has the depth but needs a compartment over 30 cm tall. On a deep floating shelf the skyline works best at the back, where it does not hide anything.
Risers and lighting

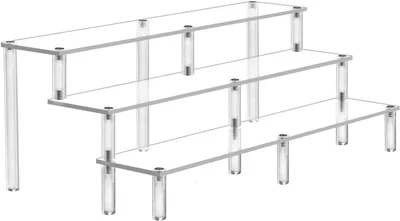

AZEAM 3-tier acrylic riser: a back row that stays visible
- Size: 40 × 21 × 15 cm assembled
- Steps: three, each 40 × 8 cm
- Material: 4 mm acrylic
A riser turns the unused space beside a big set into a stand for minifigures and small builds. Set lengthwise on a 29.5 cm board, it leaves 8.5 cm in front (calculated). Each 8 cm step takes a row of minifigures. AZEAM does not state a load, so keep it to figures and light builds.

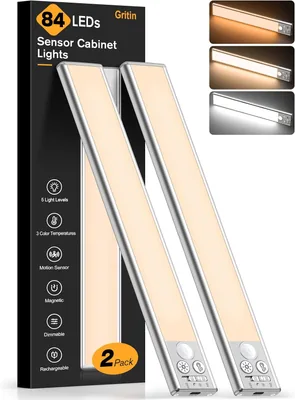

Gritin rechargeable LED light bars (2-pack): light without cables
- Size: two bars of about 26 × 4 × 1 cm
- Mounting: built-in magnets, with adhesive metal plates for wooden shelves
- Light: 3 colour temperatures (3000, 4500 and 6000 K), 5 brightness levels and a motion-sensor mode
- Power: rechargeable over USB-C
These bars stick to the underside of the shelf above a display, so there are no cables to route along the wall. Two bars cover 52 cm of an 89.9 cm board (calculated). They only work where there is a shelf above, so the top board and a lone Barad-dûr need a different solution.
Mounting, load and care
The wall connection is usually the weak point, not the shelf. Use fixings that suit your wall: screws into studs or solid masonry, and anchors made for plasterboard only where the maker allows them. The Fun Memories listing advises against relying on anchors alone. IKEA requires BILLY and KALLAX to be anchored to the wall.
Load figures in shelf listings are maxima, and several listings here give different numbers in different places. Lego does not publish the assembled weight of its sets, so you cannot check a set against a shelf rating. Titanic on a LACK 190 is a good example: the length fits, but Lego publishes no weight to compare with IKEA's 15 kg. Keep the heaviest builds on the lowest, fully supported shelves.
Keep every display out of direct sunlight. To dust, use a soft brush, a vacuum cleaner with a brush attachment or a blower. Our step-by-step guide to cleaning Lego covers deeper cleaning when a brush is not enough.
Lego display shelf FAQ
How deep should a shelf for Lego modulars be?
At least 26 cm of usable depth. Current modulars are 25 or 26 cm deep, and Jazz Club is 26 cm. A 29.5 or 30 cm shelf gives a few centimetres of margin at the front, which helps when you lift a building on or off.
Does a modular fit in a KALLAX cube?
One modular fits per compartment on paper. The compartments are about 33 cm square, which leaves 2 to 3 cm above Jazz Club and Tudor Corner. Shopping Street is over 36 cm high and does not fit.
Do glass doors keep dust out?
They keep most of it out but do not seal. Open backs and gaps around the doors let some dust in, so even sets in a cabinet need an occasional dusting, just far less often than on an open shelf.
Which Lego display shelf should you buy?
Start with your deepest and tallest set, then match the shelf:
- Modulars and Technic cars on the wall: Fun Memories deep floating shelves, about 44 cm apart.
- Mid-size sets behind glass: BROTTAR display cabinet, after checking the inside depth.
- Minifigures and small builds behind glass: HOMCOM wall-mounted display cabinet.
- Small sets and skylines on a budget: Lifewit narrow wall shelves.
- Figures in the back row: AZEAM 3-tier acrylic riser.
- Light without cables: Gritin rechargeable LED light bars.
- Rivendell: a sideboard or table at least 50 cm deep, not a wall shelf.
- Barad-dûr: a top surface with nothing above it.
Our Rivendell review and Barad-dûr review go further into living with those two. For sets, parts and boxes you are not displaying, see our Lego storage ideas.
